Message started by The_Specialist on Feb 7th, 2021 at 10:11am

Title: TFT_ILI9163C.cpp file doesn't load arduino libary's
Post by The_Specialist on Feb 7th, 2021 at 10:11am
Dear,

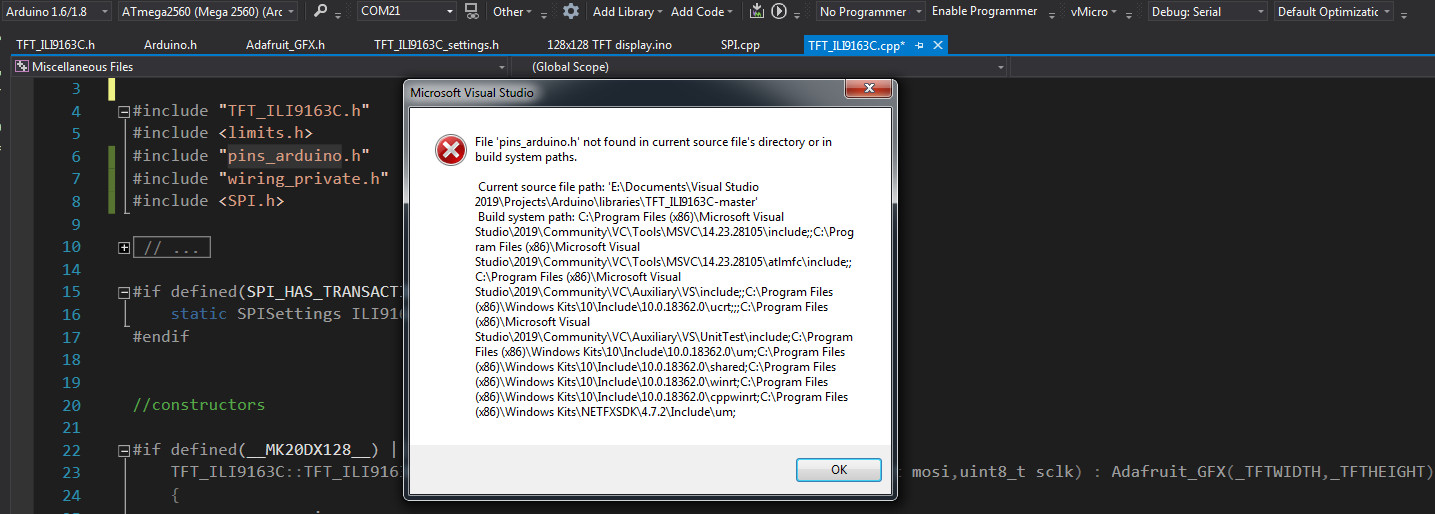

I have a project with the TFT_ILI9163C libary with an arduino mega. The "TFT_ILI9163C.h" can load the libary's, but the "TFT_ILI9163C.cpp" file has dificulty too find the file (see picture).

https://github.com/sumotoy/TFT_ILI9163C


Code (c++):
#include "pins_arduino.h"
#include "wiring_private.h"
#include <SPI.h>


Title: Re: TFT_ILI9163C.cpp file doesn't load arduino libary's
Post by Simon@Visual Micro on Feb 8th, 2021 at 7:07pm
Thanks for the report.

If you toggle the vMicro > Show/Hide Hidden files, this will add links to the project for the library files, which then allows this navigation to work as expected.

An alternative is to enable the vMicro > Add Libraries > Create Shared Project When adding libraries, and re-add the libraries to the project.

Title: Re: TFT_ILI9163C.cpp file doesn't load arduino libary's
Post by The_Specialist on Feb 8th, 2021 at 8:25pm
Thank you sir,

At first it doesn't seem too, but when I closed the open tabs and open again the library file it worked.

Kind regards,
DP

Title: Re: .h file doesn't load arduino libary's
Post by The_Specialist on Jun 10th, 2021 at 6:27am
I am working on an other project now and I am able to find librarys in the uno file. For the .h file I created in the project, it doesn't search in the right location. I try the solution we have find before in this topic ,but it doesn't  look in this .h file and there for not showed. when I add the library from the toolbar it add's it to the uno file.

Any Ideas I could do more? Maybe cloning those files in my project folder. If there are other solution I would be glad to hear.



Title: Re: TFT_ILI9163C.cpp file doesn't load arduino libary's
Post by The_Specialist on Jun 10th, 2021 at 6:46am
Soo,

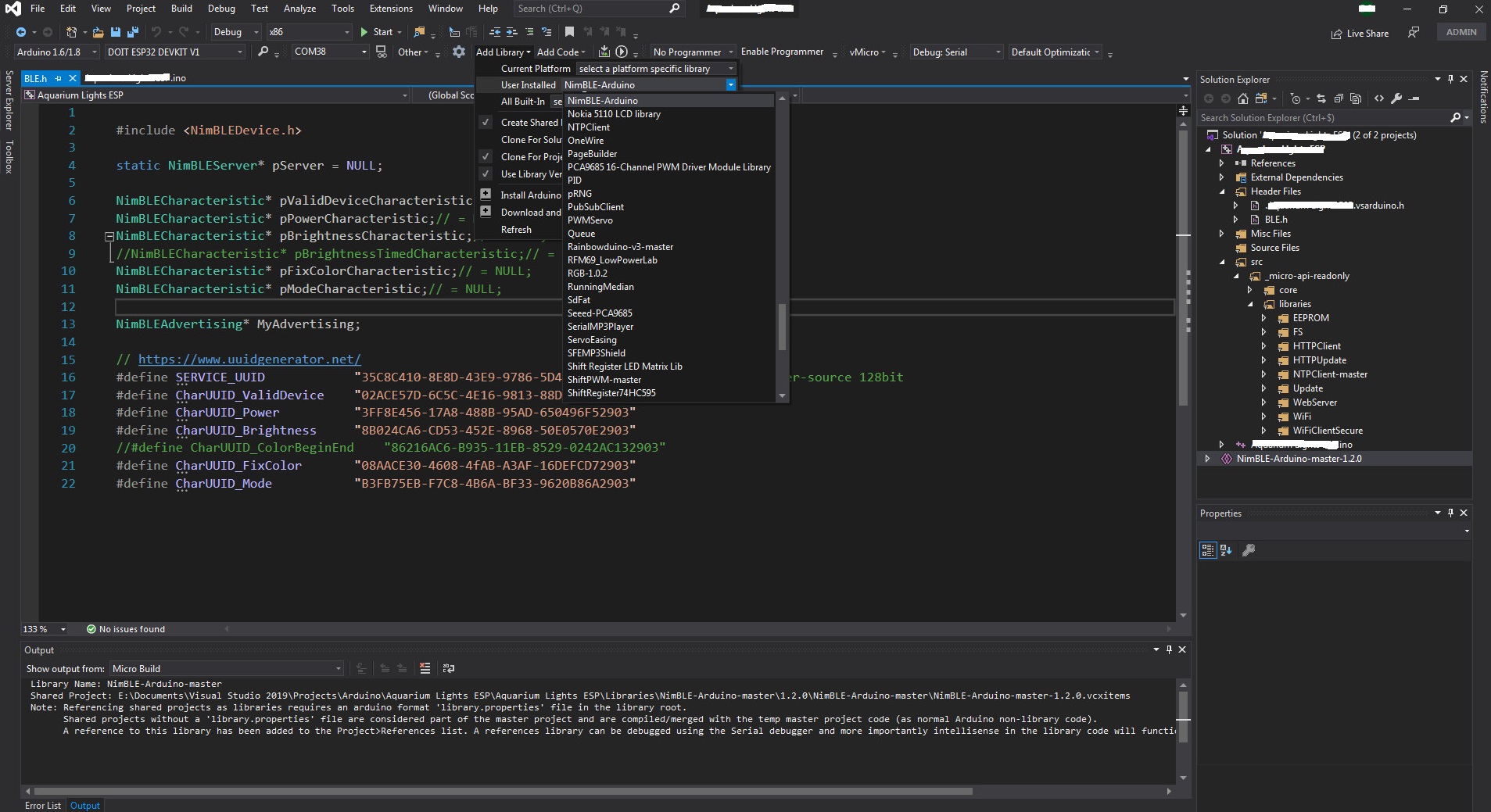

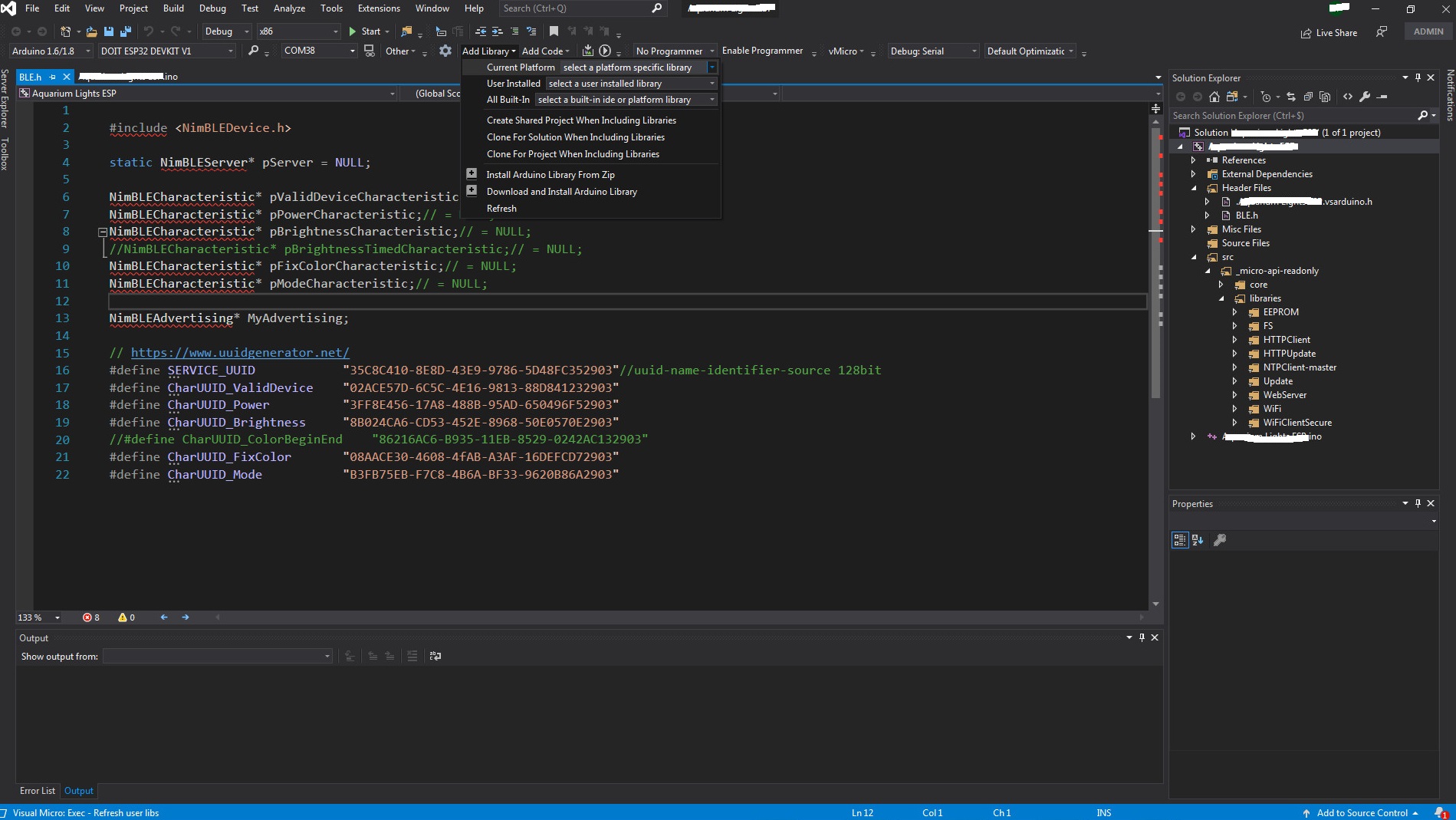

I checked on "clone for library when inported in to project"
I add the library from the toolbar
I deleted It from the uno file
and now it found the library in the .h

What I did by doing that is add the library to the "Libraries folder of my project" and now he finds the files.

Maybe the reason is that I relocated the project folder and libraries to an other partition. It's all config in the arduino IDE. But sometimes it works especially with imported libaries and sometimes I have problems with it... very strang.

Title: Re: TFT_ILI9163C.cpp file doesn't load arduino libary's
Post by The_Specialist on Jun 10th, 2021 at 8:32am
Now I am stuck. In micro build I get te message...

My Project.ino: 77:17: fatal error: BLE.h: No such file or directory
compilation terminated
An error was encountered during the 'Deep Search' library discovery process.
Debug build failed for project 'My Project'

line77 is #include <BLE.h>

When I click on it, it opens but in build it doesn't find the file.

Title: Re: TFT_ILI9163C.cpp file doesn't load arduino libary's
Post by Simon@Visual Micro on Jun 10th, 2021 at 9:31am
Thanks for the report.

Can you enable the options shown at the top of the page, and attach the full build output from your project?

Title: Re: TFT_ILI9163C.cpp file doesn't load arduino libary's
Post by The_Specialist on Jun 10th, 2021 at 10:22am
See attachment for the full build.
https://www.visualmicro.com/forums/YaBB.pl?action=downloadfile;file=Verbose_012.txt (103 KB | 2 )

Title: Re: TFT_ILI9163C.cpp file doesn't load arduino libary's
Post by Simon@Visual Micro on Jun 10th, 2021 at 10:36am
Does changing the #include <BLE.h> to #include "BLE.h" allow the project file to be found?

Also removed the cloned library from the project, and the src folder and all sub folders in the solution explorer.

Then try rebuilding the project.

Title: Re: TFT_ILI9163C.cpp file doesn't load arduino libary's
Post by The_Specialist on Jun 10th, 2021 at 11:28am
Yes, it works! Thanks
