Configure Arduino Debugging to use Software Serial

by Visual Micro 6. May 2012 12:00

The method of "Transport" used to send or receive debug messages on the Arduino defaults to standard serial ports such as Serial or Serial1 etc. The default (empty) is "Serial" however the RemotePort project property can be altered to another port suppoted by the micro-controller.

The "RemoteTransport" project property allows SoftwareSerial and spare digital pin(s) to be used as an alternative to the built-in Serial ports. The SoftwareSerial library is automatically included duiring debug compilation if required. The RemoteTx (and RemoteRx for Debug Break/Pause/Step) project properties should be populated with the digital pin numbers used for tx/rx on the Arduino. See the arduino.cc software serial guide when choosing digital pins

To use FastSerial the project must include all required library references and the RemoteTransport project property must be set to FastSerial. Other methods of debugger "transport" can be added by advanced users. We hope that in the future debugger transport will be configurable using a simple user interface. Please ask in the forum for more information.

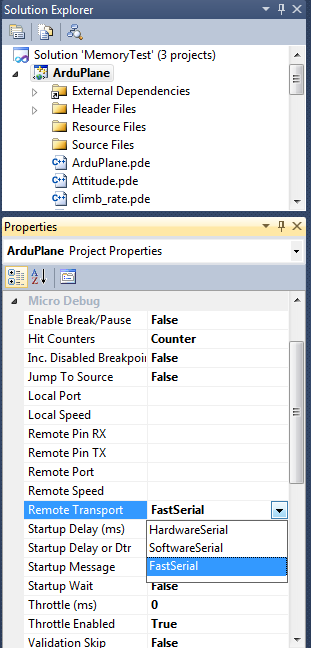

All of the options shown below are default except for the FastSerial setting.

click the image for a draft debugger overview tutorial

Tips...

  • To use a different Arduino serial port such as Serial2, enter Serial2 as the "RemotePort" property
  • To use a different PC serial port such as COM7, enter COM7 as the "LocalPort" property
  • To switch from the default speed of 115200, set the "LocalSpeed" to value from the pick list, RemoteSpeed will change automatically to match.
  • Apm users should not that the "Throttle" properties relate to debugger bandwidth throttling and are nothing to do with drones :) Leave the throttle at the defaults, learn more about the throttle via the forum.
  • If using SoftwareSerial on spare digital pins you should clear the RemotePort property and set the Remote Rx Tx Pins to the digital pins that are connected to the serial device or cable. If "Break/Pause" and "Startup Wait" are not enabled (default) then only the Arduino Tx pin is required

And a few hints that might mean something at some stage...

1) Validation Skip (project property)

Set to False if you are not altering the arduino code in a way that might cause compilation errors. This will skip the "release" build of apm that happens prior to the debug build. (Saves time)

2) TracePoint Throttle (project property)

An unconditional breakpoint/tracepoint example in the 50hz loop is a good example for us to use...

By default, for newer users and non fastserial users the breakpoints are throttled so that the 50hz loop will only run at about 8-12hz. Visual micro ensures an 80 millisecond delay between breakpoints.

a)
FastSerial, if available, is more efficient than normal Arduino Serial therefore you could change the project property called Throttle (ms) to, for example, 30 (milllis) which would improve the speed. Leaving the Throttle (ms) empty uses the default of 80ms.

or b)
Try setting "Throttle Enabled = False" to entirely disable throttling in which case apm will send as fast as it can but it is possible for the arduino buffer to overflow causing the debug to stop working or invalid serial packets to be received by the debugger

or c)
Set the breakpoint "HitCount" to 50. Because we are in the 50hz loop this should produce one debug breakpoint message every second allowing apm to function at full speed inbetween each breakpoint message

or d)
Set the "Hit Counter" project property to milliseconds and all the breakpoint "HitCounters" will no longer be treated as counts, instead the HitCounts will represent milliseconds. So a breakpoint "HitCount" of 1000 would produce a debug  message exactly once every second regardless of where you put the breakpoint.

IMPORTANT NOTES

When sharing the serial port with the arduino code you might expect to see some "junk" in the serial window. This is normal, the debugger windows will workaround the "junk" and function correctly. If your arduino program reads the serial port then you will not be able to switch on the break/pause facility in which case you should use a different arduino serial port or SoftwareSerial on two digital pins.

The throttle setting is very dependant on the speed of your pc. If the arduino sends messages faster than your pc can process them the pc display will fall behind the arduino. The pc display will no longer be real-time and will be confusing.
