Chart Area
Aug 31st, 2016 at 1:03pm
Print Post
Hi, in your tutorial I see that your charts have the Area draw:



how can I have my @Plot draw an area?

Thank you in advance!
Best,
R.

Back to top

IP Logged

Tim@Visual Micro
Administrator
*****
Offline


Posts: 12188
Location: United Kingdom
Joined: Apr 10th, 2010
Re: Chart Area
Reply #1 - Aug 31st, 2016 at 3:45pm
Print Post
Hi,

There is a link to the breakpoint @Plot facility in the main documentation index

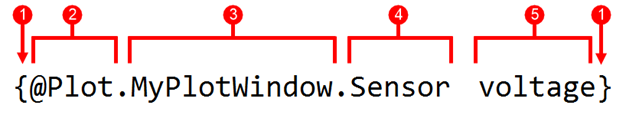

How To: {@plot}



Hope that helps
« Last Edit: Aug 31st, 2016 at 3:57pm by Tim@Visual Micro »
Back to top
WWWFacebookTwitterYouTube
IP Logged

ram
Junior Member
**
Offline


Posts: 37
Joined: Aug 6th, 2016
Re: Chart Area
Reply #2 - Aug 31st, 2016 at 7:34pm
Print Post
Hi Tim,

Thank you for your reply.

I think that I wasn't clear enough in my post, my goal is to have the area drawn as in your examples:


Back to top

IP Logged

Tim@Visual Micro
Administrator
*****
Offline


Posts: 12188
Location: United Kingdom
Joined: Apr 10th, 2010
Re: Chart Area
Reply #3 - Aug 31st, 2016 at 9:03pm
Print Post
Ok

Take a look at the settings window. It's not very well documented but the "Display" tab is probably the one to use for basic color fill.

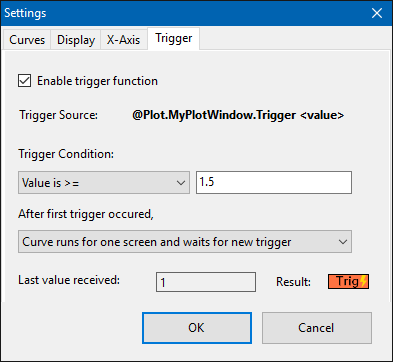

This pic shows the Trigger tab selected but the settings buttons on the toolbar all lead to the same settings window with the tabs as shown below



Can you see the settings window or is it missing?

If we can;t work it out from the settings on the various tabs I will have to call on the chart doctor, a man called Heinz who implemented the clever bits Smiley
« Last Edit: Aug 31st, 2016 at 9:07pm by Tim@Visual Micro »
Back to top
WWWFacebookTwitterYouTube
IP Logged

ram
Junior Member
**
Offline


Posts: 37
Joined: Aug 6th, 2016
Re: Chart Area
Reply #4 - Aug 31st, 2016 at 10:26pm
Print Post
Smiley thank you for that, I do get the settings window but I don't get to make it anywhere remotely close to my goal  Undecided , that being said, there's no need to disturb Dr. Heinz as it's defiantly not in my critical path, just thought it looks cool  Smiley

BUT, if we are on this subject, is it possible to draw the lines not from the right end of the chart:


Back to top

IP Logged

Tim@Visual Micro
Administrator
*****
Offline


Posts: 12188
Location: United Kingdom
Joined: Apr 10th, 2010
Re: Chart Area
Reply #5 - Sep 1st, 2016 at 2:18am
Print Post
I just noticed you have the free memory report open. That is't the @plot.

Maybe there is some misunderstanding about what you have switched on.

Can you switch off the free memory report and also analog pin viewer if you have enabled them.

If you want to use the @plot command then please confirm what syntax you have used?

If you don't know about @plot I can point you to the docs.

It's very easy to create your own charts. The standard built-in debugger charts uch as analog pin and memory viewer do not have the color features.

Thanks

« Last Edit: Sep 1st, 2016 at 2:21am by Tim@Visual Micro »
Back to top
WWWFacebookTwitterYouTube
IP Logged

ram
Junior Member
**
Offline


Posts: 37
Joined: Aug 6th, 2016
Re: Chart Area
Reply #6 - Sep 2nd, 2016 at 9:34am
Print Post
once again I've failed to communicate my point  Roll Eyes

I've used the free memory chart as an example (the right chart the one with the gap) my @plot chart is the one on the left side where I wanted to have the same gap as the free memory chart or for that matter as the analog chart, please have a look at the following short screen capture https://youtu.be/rcQlBVTi66w ;


Back to top

IP Logged

Heinz Kessler
Full Member
***
Offline


Posts: 217
Location: Freiburg, Germany
Joined: May 25th, 2012
Re: Chart Area
Reply #7 - Sep 2nd, 2016 at 4:39pm
Print Post
Hi,
no problem asking me Smiley

You can set the chart's properties by clicking on the button indicated by (1) in the following image, then you can choose the chart type as shown by (2):



Heinz



Back to top

IP Logged

Tim@Visual Micro
Administrator
*****
Offline


Posts: 12188
Location: United Kingdom
Joined: Apr 10th, 2010
Re: Chart Area
Reply #8 - Sep 2nd, 2016 at 4:50pm
Print Post
Thanks. I suspect the last question is how to get a gap to the right ☺

Back to top
WWWFacebookTwitterYouTube
IP Logged

Heinz Kessler
Full Member
***
Offline


Posts: 217
Location: Freiburg, Germany
Joined: May 25th, 2012
Re: Chart Area
Reply #9 - Sep 2nd, 2016 at 5:34pm
Print Post
No, there's currently no such option. What would it be good for?

Back to top

IP Logged

Tim@Visual Micro
Administrator
*****
Offline


Posts: 12188
Location: United Kingdom
Joined: Apr 10th, 2010
Re: Chart Area
Reply #10 - Sep 2nd, 2016 at 6:12pm
Print Post
I don't know Smiley

Back to top
WWWFacebookTwitterYouTube
IP Logged

ram
Junior Member
**
Offline


Posts: 37
Joined: Aug 6th, 2016
Re: Chart Area
Reply #11 - Sep 3rd, 2016 at 8:40am
Print Post
Hi Guys,

many thanks for your support! I can't believe I've missed that display settings..

re "What would it be good for?" it's just easier to read the chart data in real time, the same way you implemented it in your charts (free memory and the analog values), in any case its just a cosmetic thing  Smiley

Cheers,
R.
