An error I don't know what it is (Read 3312 times)

GeorgeZZ Newbies Offline Posts: 3 Joined: Apr 24^th, 2017	An error I don't know what it is Apr 24^th, 2017 at 8:10pm	Print Post

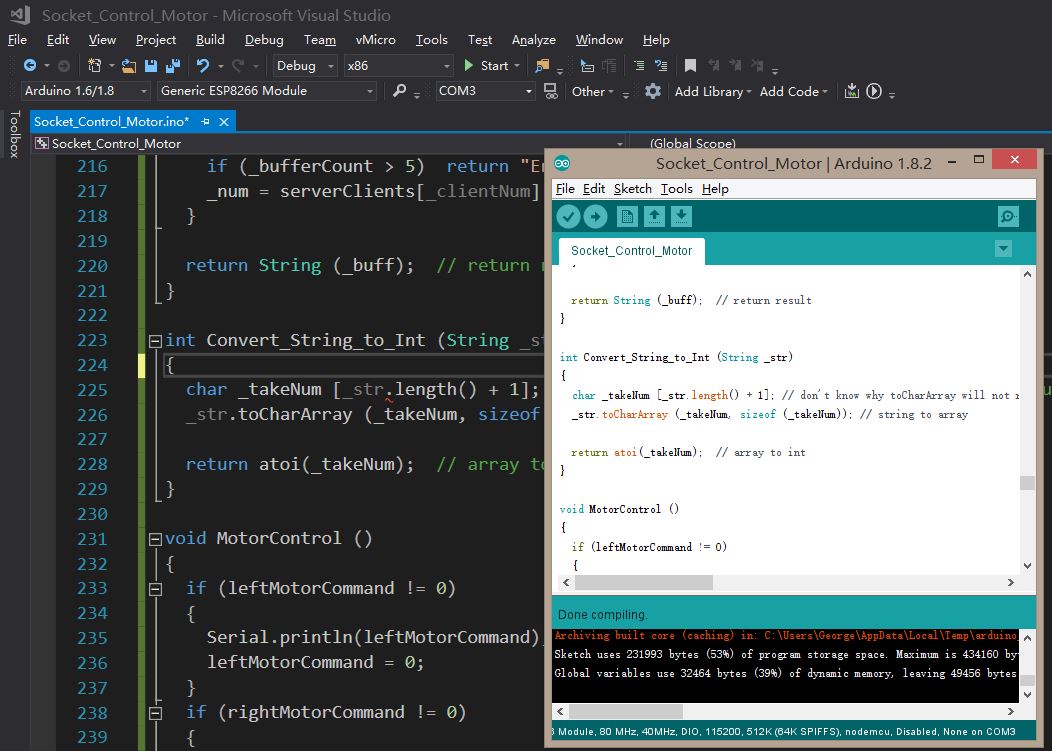

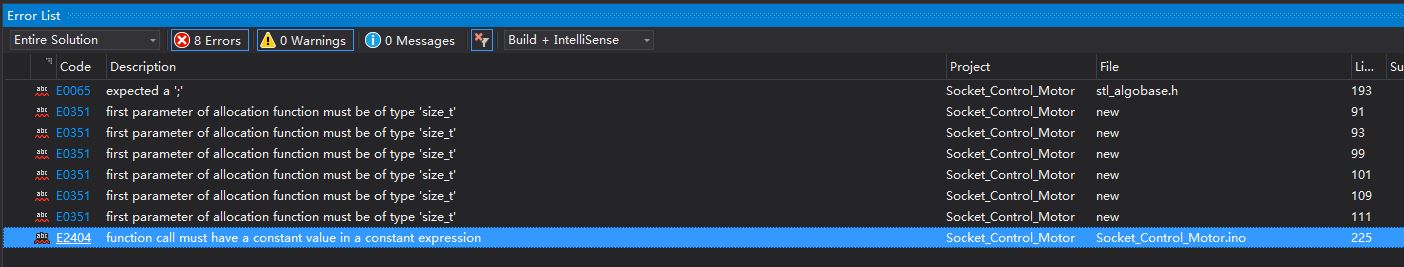

	Hi all, I'm new to here. I'm using vs2017 and Arduino IDE is 1.8.2. I'm using a esp8266 module. The problem is describe below: The code is ok, can be Arduino IDE compile and upload to esp8266. But in vs2017 shows my array index will shows error with use anything except a number. This is where vs2017 shows the error. But actually the Arduino IDE compile with no error, Arduino IDE can upload this code in to esp8266 board and run smooth. In error list I found this: Any suggestions? Thanks.
	« Last Edit: Apr 24^th, 2017 at 8:13pm by GeorgeZZ »
	Please Register or Login to the Forum to see File Attachments
	IP Logged

Tim@Visual Micro Administrator Offline Posts: 12191 Location: United Kingdom Joined: Apr 10^th, 2010	Re: An error I don't know what it is Reply #1 - Apr 24^th, 2017 at 8:29pm	Print Post
	Hi, They might be false intellisense errors which can be ignored. We can look into them but first let's be sure of the situation ... Please click a build command or build and upload. Then we can see if it is the same as the Arduino IDE? Also switch the combo box on the "Errors List" from "Entire Solution" to "Open Documents" Thanks


	WWW Facebook Twitter YouTube IP Logged

GeorgeZZ Newbies Offline Posts: 3 Joined: Apr 24^th, 2017	Re: An error I don't know what it is Reply #2 - Apr 25^th, 2017 at 4:51pm	Print Post
	Tim@Visual Micro wrote on Apr 24^th, 2017 at 8:29pm: Hi, They might be false intellisense errors which can be ignored. We can look into them but first let's be sure of the situation ... Please click a build command or build and upload. Then we can see if it is the same as the Arduino IDE? Also switch the combo box on the "Errors List" from "Entire Solution" to "Open Documents" Thanks hi, the screen shot are in attachment. After I clicked on Build and upload, although it says "The upload process has finished", it actually doesn't make my board works.
	« Last Edit: Apr 25^th, 2017 at 5:13pm by GeorgeZZ »
	Please Register or Login to the Forum to see File Attachments
	IP Logged

Tim@Visual Micro Administrator Offline Posts: 12191 Location: United Kingdom Joined: Apr 10^th, 2010	Re: An error I don't know what it is Reply #3 - Apr 25^th, 2017 at 7:58pm	Print Post
	Hi, switch the tool bar from Debug to Release and try the upload again. If you continue to have a problem then switch on vmicro>compiler>verbose and "show build properties" Then build and copy the output to a new .txt text file and email to info[at]visualmicro.com along with a link to this post Thanks


	WWW Facebook Twitter YouTube IP Logged

GeorgeZZ Newbies Offline Posts: 3 Joined: Apr 24^th, 2017	Re: An error I don't know what it is Reply #4 - Apr 27^th, 2017 at 7:02pm	Print Post
	After I set debug to release, the project can be upload to my board. But the array index still showing error, so I send email, thanks.


	IP Logged

Tim@Visual Micro Administrator Offline Posts: 12191 Location: United Kingdom Joined: Apr 10^th, 2010	Re: An error I don't know what it is Reply #5 - Apr 27^th, 2017 at 7:14pm	Print Post
	Hi Thanks for the file. You can ignore the intellisense error I will try to work around it in the next release. Clicking build/upload is the same as using validate/upload in the arduino ide which will give accurate error results. There are short cut keys for all build commands (see the Build or Debug menu. When the tool bar is set to Release pressing F5 is same as clicking upload.


	WWW Facebook Twitter YouTube IP Logged
